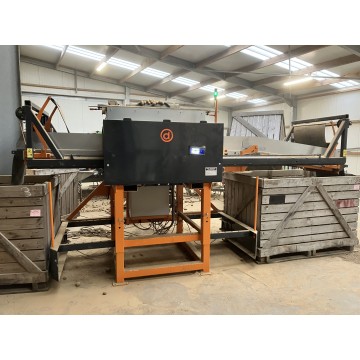

Box filler KV2400

Reference: KV2400

The KV2400 box filler is suitable for box widths from 1,600 mm to a maximum of 2,400 mm. This high-performance machine is very suitable for large outputs up to 60 boxes per hour.

Please feel free to contact us for more information!

Configure your machine

Ask for a quote

Available models:

Minimal box width Maximal box width Flow
KV2400 1.600 2.400mm 70-80 ton/h

Standard features:

  • On a single frame, adjustable in height, equipped with tubes for moving by trolley
  • Chassis with adjustable left and right box stopper for 2 boxes
  • Cross conveyor belt:
    • 3-layer, self-guiding, vulcanised PVC belt
    • Belt width 700mm
    • Belt transmission by means of an electric motor, speed adjustable by frequency inverter
    • 2 hinged goosenecks, 1 on the left and 1 on the right, which are lowered into the box by electric motor on the left and right
    • Product stoppers on the belt
    • Moves left and right by a double chain mechanism and electric tranmission
  • Automated controls:
    • Phase control to ensure correct operation
    • Automatic filling of the boxes by means of a PLC
    • Fully adjustable machine by means of an HMI
    • Variable speed control of lateral movement
    • Variable speed control of the belt
    • Additional controlled socket for the product feed belt
    • Signalisation on top of the machine
    • Electronic box detection
    • Electronically adjustable product detection

Options:

  • Mobile supply conveyor:
    • Length: 5m00
    • Width 800mm
    • Rubber belt 250/2 with low chevrons (17mm), vulcanised
    • Cage drums on axles 30mm
    • Electric motor with slip-on reduction, 1 speed
    • Thermally protected
    • Mobile chassis with 4 cast iron swivel castors (surrounded by PU), 2 with brake
    • Mechanically-manually adjustable inclination
  • Electronically adjustable product height: As a standard the product detection can be modified on the productsensor itself. Depending on the flowrate and the desired filling height this needs to be adjusted regularly. As an option this can be done throught the HMI on the box settings display on which the desired height can be set in centimeters.

Please feel free to ask for a custom-made version or option!
