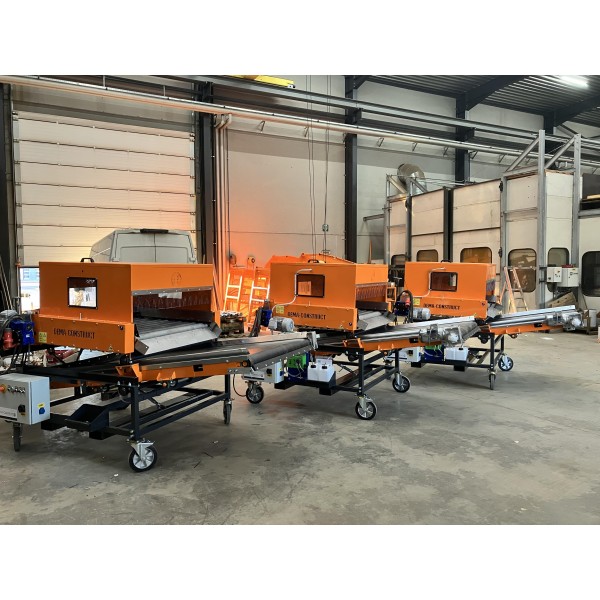

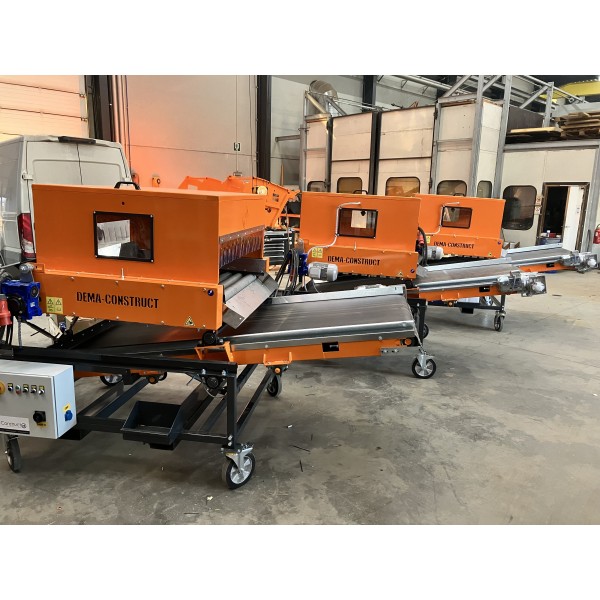

Seed potatoe treatment device

Reference: PBS

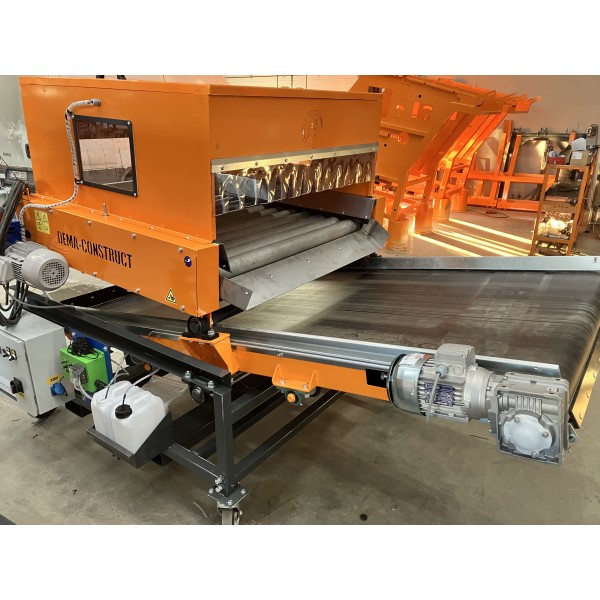

The DEMA plant treatment table treats the plants by means of driven rollers. Above the 9 / 12 stainless steel rollers is a system that sprays the liquid onto the plants. Thanks to the rollers the plants rotate during the treatment, thus covering the whole surface with the liquid. At the end of the rollers the plants are directed to an exit belt. This belt, adjustable in inclination, starts below the rollers, so that the residue of the liquid is collected with the treated product.

Please feel free to contact us for more information!

Configure your machine

Ask for a quote

Available models:

N° of rolls Width Flow
PBS9x800 9 800mm 16 T/h
PBS12x1.200 12 1.200mm 25 T/h

Standard features:

  • 9 / 12 driven, plain stainless steel rollers
  • PU scraper under each roller
  • Electric and chain transmission to drive the rollers
  • Speed regulation of the rollers by means of frequency invertor
  • Mechanically-manually adjustable inclination of the roller set
  • Housing on top of the roller set, equipped with:
    • Support for the atomiser unit
    • Opening cover
    • Plexi viewing windows on both sides
    • PVC seal altong the in & out side to prevent wind influence
  • Exit belt for the treated product:
    • Length: 2m50
    • Width in function of the roll width
    • Plain PVC belt, 2-layers, self-steering, vulcanised
    • Tube drums on axles 30mm
    • Electric motor with wormwheel transmission, 1 speed, standard 25 m/min
    • Thermally protected
    • Belt scraper
    • Mechanically-manually adjustable inclination
  • Controlled socket 220V for controlling the spray set (or via control signal)
  • On an individuel chassis, fitted with tubes for moving with forklift truck

Options:

  • Processing system. There are several possibilities:
    • Mafex
    • Pieperdoes
    • Delivered by the customer

  • Product supply conveyor to the roller set:
    • Length: 1m25
    • Width in function of the roll width
    • Plain PVC belt, 2-layers, self-steering, vulcanised
    • Tube drums on axles 30mm
    • Electric motor with wormwheel transmission, 1 speed, standard 25 m/min
    • Thermally protected
    • Belt scraper
    • Mechanically-manually adjustable inclination

Please feel free to ask for a custom-made version or option!
