Optical sorter

Reference: SELECTORAPTOR

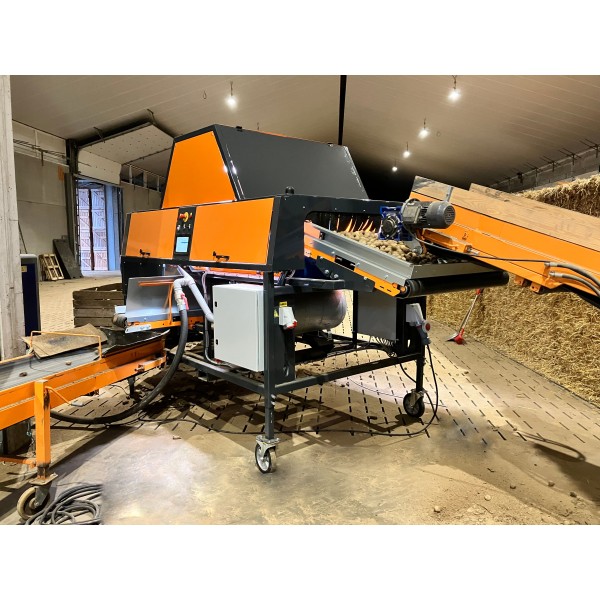

The DEMA optical sorter is one of a kind! No fingers and no other moving parts to eject waste from your product stream. Our model operates solely using air! So there are no fingers that can break or cylinders that can jam, and it can remove both heavy and light weight objects from your stream with a high reaction speed.

Please feel free to contact us for more information!

Configure your machine

Ask for a quote

Available models:

Working width Flow rate
SELECTORAPTOR OS1200 1.200mm 40 T/h (*)
SELECTORAPTOR OS1800 1.800mm 60 T/h (*)
SELECTORAPTOR OS2400 2.400mm 80 T/h (*)

 (*) Average flow rate based on a product diameter of 50–60 mm.

Standard features:

  • Self-guiding feed conveyor with electric drive
  • Inspection-/launch belt, self-guiding hedgehog belt with electric drive
  • Self-guiding receiving belt, with electric drive
  • Cross conveyor belt for waste, belt width 500 mm, electric drive, rotating left/right
  • Cross conveyor belt for the product, belt width 700 mm, electric drive, rotating left/right
  • Camera and pneumatic system, including:
    • One camera per 600mm working width
    • Pneumatic V-shaped valve block with a double pneumatic valve per nozzle
    • Pneumatic system with filters and reservoirs
    • Separate control unit, including an AI-powered computer
    • Touchscreen operating system
  • The individual models are built on a separate frame, fitted with wheels and a tow bar

Important aspects:

  • Trained to clean the following product:
    • Potatoes
    • Seed potatoes
    • Onions
  • The machine does not use any physical components to remove the waste:
    • No fingers that can break
    • No hinges that get stuck
    • No cylinders that can jam
  • The pneumatic ejection system allows both heavy and light objects to be removed
  • Minimum detection diameter: 25 mm

Options:

  • Feed elevator on the stand-alone version
  • Various installation options available on request

Please feel free to ask for a custom-made version or option!

SELECTORAPTOR
